ASTM A403 WP304/WP304L Stainless Steel Elbow, Buttweld Fitting, ASME B16.9

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	YUHONG
Certification:	API, PED , ABS, DNV, BV, LR
Numéro de modèle:	ASTM A403 WP304/WP304L

Conditions de paiement et expédition:

Quantité de commande min:	1 pièce
Prix:	Negitable
Détails d'emballage:	Enveloppe ou palette en PLY
Délai de livraison:	7 jours
Conditions de paiement:	LC, T/T
Capacité d'approvisionnement:	1000 tonnes par mois

Contact

Tous les produits

Pipe sans soudure en acier inoxydable (308)

Tube sans couture d'acier inoxydable (297)

Tuyau d'acier inoxydable duplex (132)

Tube d'acier inoxydable de duplex (33)

Tubes à aiguille (134)

Tubes à nageoires (672)

échangeur de chaleur (20)

tube d'échangeur de chaleur (443)

Résistance à l'échangeur de chaleur (40)

Plaque tubulaire pour échangeur de chaleur (117)

cloison d'échangeur de chaleur (37)

Refroidisseur d'air (9)

Récipient sous pression (4)

tuyau soudé d'acier inoxydable (58)

Tube soudé d'acier inoxydable (120)

Tuyau d'alliage de nickel (266)

Tube d'alliage de nickel (92)

Tube d'alliage de cuivre (240)

Tube d'acier allié (204)

Tube titanique (15)

tube recuit lumineux (155)

Tube de chaudière (151)

montage en acier (826)

Bride en acier (615)

Autres (401)

Pièces de revêtement (7)

Description de produit détaillée

Mettre en évidence:

ASTM A403 stainless steel elbow

buttweld fitting ASME B16.9

WP304L stainless steel fitting

Product Overview & Specifications

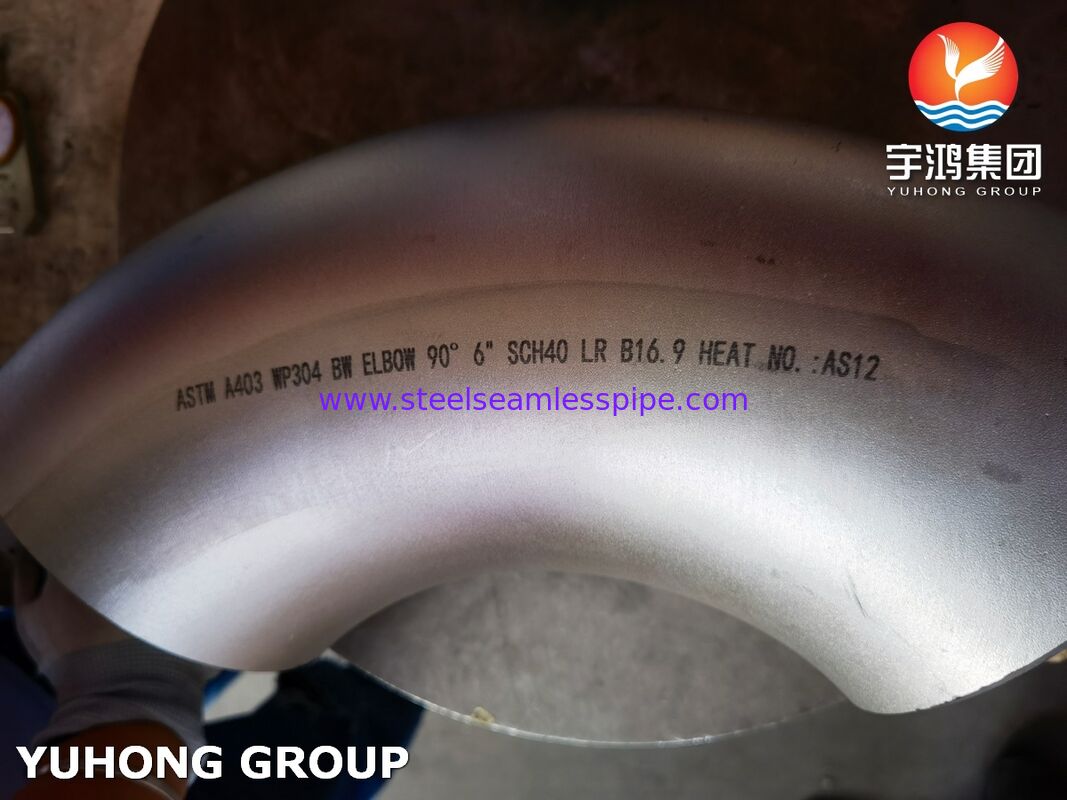

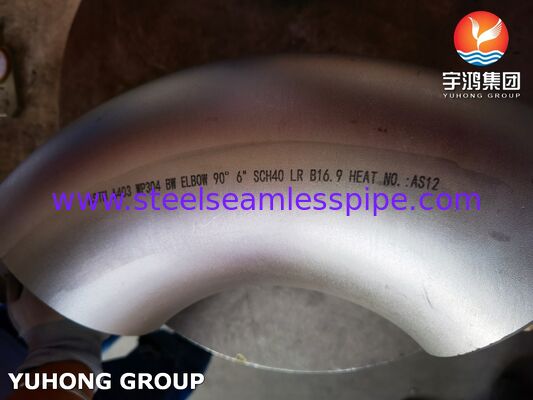

This product is a Stainless Steel Butt Weld Elbow, manufactured to the highest industry standards for pressure piping systems. It is designed to change the direction of pipeline flow at a 90-degree angle, ensuring a secure, leak-proof connection when welded directly to pipes of matching size and material.

The elbow conforms to two critical standards:

Material & Manufacturing Standard: ASTM A403/A403M (2022 edition). This standard governs wrought austenitic stainless steel fittings for pressure piping applications. The prefix "WP" indicates that the fitting conforms to ASME dimensional and pressure rating standards.
Dimensional Standard: ASME B16.9. This standard defines the precise factory-made dimensions, tolerances, and ratings for butt-welding fittings, ensuring perfect compatibility and interchangeability within piping systems.

The dual-grade marking WP304/304L signifies that the chemical composition and mechanical properties of the fitting meet the requirements for both 304 and 304L stainless steel grades.

Material: Austenitic Stainless Steel

The elbow is made from wrought austenitic stainless steel, known for its excellent corrosion resistance, good formability, and durability. The "WP304L" designation corresponds to the unified numbering system (UNS) code S30403.

Chemical Composition

The key difference between 304 and 304L grades is the controlled lower carbon content in 304L, which minimizes carbide precipitation during welding and enhances resistance to intergranular corrosion. The chemical composition ranges are as follows:

Element	Grade 304	Grade 304L
Carbon (C)	≤ 0.08%	≤ 0.03%
Chromium (Cr)	18.0 - 20.0%	18.0 - 20.0%
Nickel (Ni)	8.0 - 11%	8.0 - 12.0%
Manganese (Mn)	≤ 2.0%	≤ 2.0%
Silicon (Si)	≤ 1.0%	≤ 1.0%
Phosphorus (P)	≤ 0.045%	≤ 0.045%
Sulfur (S)	≤ 0.03%	≤ 0.03%

Mechanical Properties

The fitting meets the minimum mechanical property requirements as stipulated by the ASTM A403 standard.

Property	Grade 304	Grade 304L
Tensile Strength	≥ 75 ksi (515 MPa)	≥ 70 ksi (485 MPa)
Yield Strength (0.2% Offset)	≥ 30 ksi (205 MPa)	≥ 25 ksi (170 MPa)
Elongation	-	≥ 40%

Applications

This stainless steel elbow is suitable for a wide range of applications due to its corrosion resistance and strength, including:

Chemical & Petrochemical Processing: Handling corrosive fluids and gases.
Food & Beverage and Pharmaceutical Industries: Where hygiene and cleanability are paramount.
Oil & Gas and Power Generation: For various process and service piping.
General Industrial Piping Systems: In applications requiring durable and reliable pipe connections.
