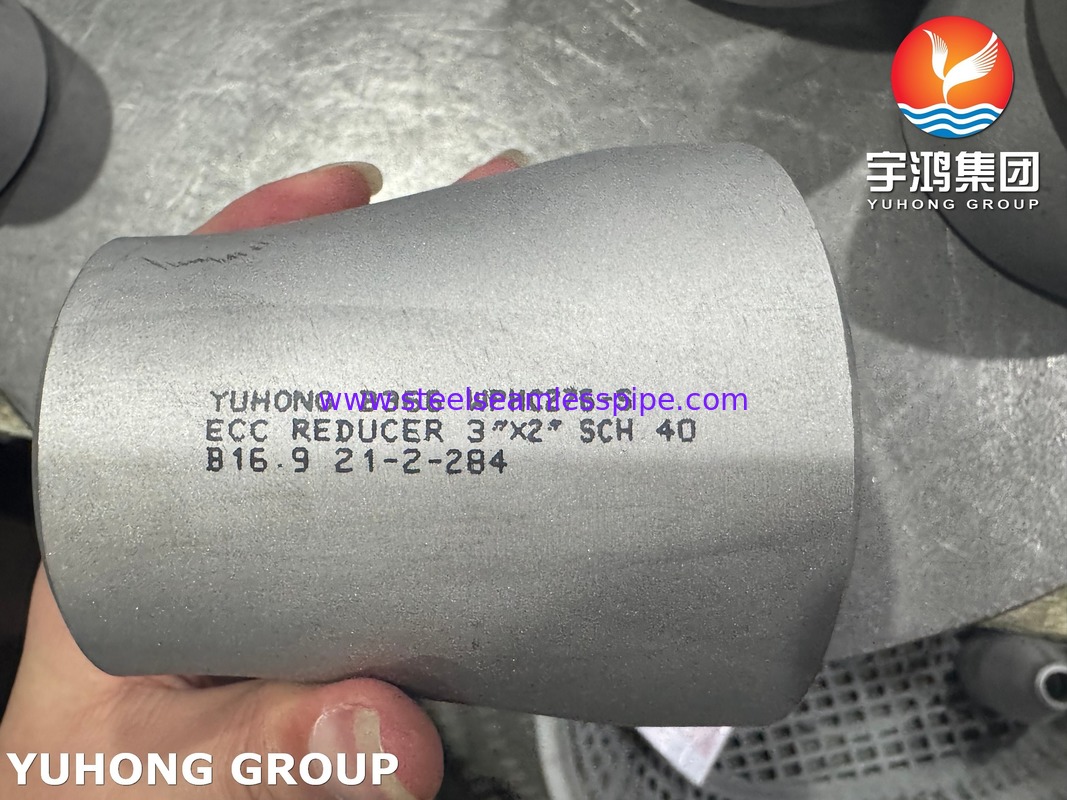

ASTM B366 WPHY 276 ECC Reducer Nickel Alloy Concentric Reducer for Chemical Plant & Marine Piping System

Détails sur le produit:

Lieu d'origine:	CHINE
Nom de marque:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Numéro de modèle:	Nombre de pièces de rechange

Conditions de paiement et expédition:

Quantité de commande min:	500 kg
Prix:	Négociable
Détails d'emballage:	Case de contreplaqué / cas de fer
Délai de livraison:	15-30 jours
Conditions de paiement:	L / C, T / T
Capacité d'approvisionnement:	1500 tonnes par mois

Contact

Tous les produits

Pipe sans soudure en acier inoxydable (290)

Tube sans couture d'acier inoxydable (277)

Tuyau d'acier inoxydable duplex (127)

Tube d'acier inoxydable de duplex (29)

Tubes à aiguille (107)

Tubes à nageoires (631)

échangeur de chaleur (17)

tube d'échangeur de chaleur (424)

Résistance à l'échangeur de chaleur (37)

Plaque tubulaire pour échangeur de chaleur (116)

cloison d'échangeur de chaleur (36)

Refroidisseur d'air (8)

Récipient sous pression (4)

tuyau soudé d'acier inoxydable (57)

Tube soudé d'acier inoxydable (114)

Tuyau d'alliage de nickel (261)

Tube d'alliage de nickel (79)

Tube d'alliage de cuivre (227)

Tube d'acier allié (184)

Tube titanique (10)

tube recuit lumineux (153)

Tube de chaudière (145)

montage en acier (804)

Bride en acier (590)

Autres (391)

Pièces de revêtement (7)

Description de produit détaillée

Standard:	ASTM B366/ASME SB366	Qualité du matériau:	WPHY 276 (UNS N10276)
Type de produit:	Réducteur excentrique	Application:	Usine chimique et tuyauterie marine
Gamme de tailles:	1/2"×1/4" à 24"×12"	Norme de conformité:	NACE MR0175
Mettre en évidence:	Nickel Alloy Concentric Reducer for Chemical Plant , ASTM B366 WPHY 276 ECC Reducer , Marine Piping System Nickel Alloy Reducer

ASTM B366 WPHY 276 ECC Reducer Nickel Alloy Concentric Reducer for Chemical Plant & Marine Piping System

YUHONG GROUP is a specialized manufacturer of high-performance nickel alloy pipe fittings with over 20 years of expertise in serving global chemical and marine industries. Our ASTM B366 WPHY 276 ECC Reducer is engineered for critical applications in chemical plants and marine piping systems, providing exceptional corrosion resistance and reliability in the most demanding environments.

Material Specifications for WPHY 276

Category	Specification	Standard / Requirement
Grade Designation	WPHY 276	High-strength low-alloy steel
UNS Designation	K22766
Product Form	Pipe Fittings	Wrought
Material Type	High-strength low-alloy steel
Tensile Strength	70-95 ksi (483-655 MPa)	Minimum 70 ksi (483 MPa)
Yield Strength	60 ksi (414 MPa) min	0.2% offset
Elongation	18% min	In 2 inches
Chemical Composition	Carbon steel with microalloying	V, Nb, Ti additions

Heat Treatment Requirements for CR 276 (UNS N10276)

Parameter	Specification	Notes
Grade Designation	CR 276	Corrosion-Resistant Fittings Alloy
UNS Designation	N10276
Alloy Type	Low C-Ni-Mo-Cr-Fe	Hastelloy C-276
Heat Treatment	A (Solution Anneal)
Solution Annealing Temperature	1925-2150°F [1050-1177°C]
Quenching Method	Rapid Air/Water

Application Advantages of ASTM B366 WPHY 276 ECC Reducer

Advantage	Simplified Description
Corrosion Resistance	Excellent resistance to acids, chlorides, and harsh chemicals.
Standards Compliance	Manufactured to ASTM B366 for quality and reliability.
Optimized Design	Eccentric design ensures smooth flow and easy installation.
Durability	Long service life in high-pressure and wide temperature ranges.
Versatility	Ideal for chemical, marine, and offshore applications.

YUHONG GROUP's ASTM B366 WPHY 276 ECC Reducer delivers exceptional performance through

✓ Superior Material Properties - Manufactured from premium nickel alloy UNS N10276, offering outstanding resistance to acidic and chloride-rich environments commonly found in chemical processing and marine applications.
✓ Precision Engineering - Features an eccentric reducer design that ensures smooth flow transition while maintaining optimal pressure ratings across various operating conditions.
✓ Rigorous Quality Assurance - Each reducer undergoes comprehensive testing and certification to meet ASTM B366 standards, providing reliable performance in critical piping systems.
✓ Proven Application Versatility - Ideal for demanding sectors including offshore platforms, chemical plants, and marine piping systems where corrosion resistance and long-term durability are essential.
✓ Customized Solutions - Available in various sizes and configurations to meet specific project requirements, backed by our technical support team.
