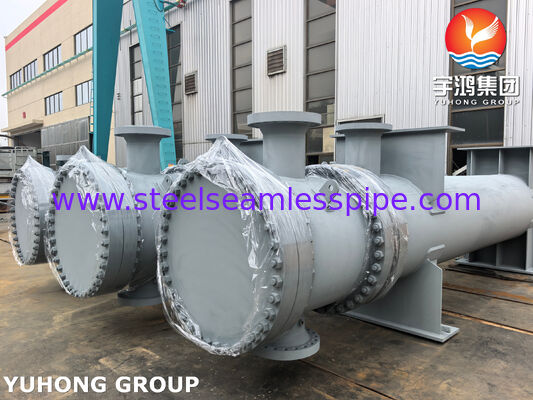

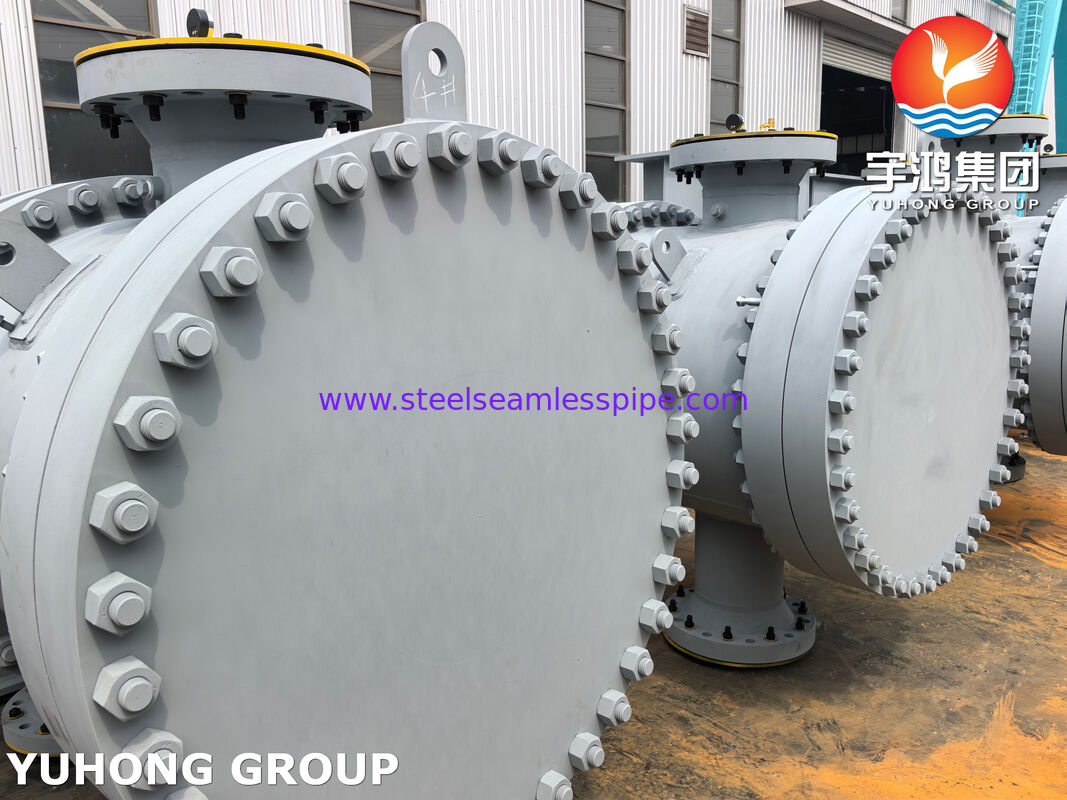

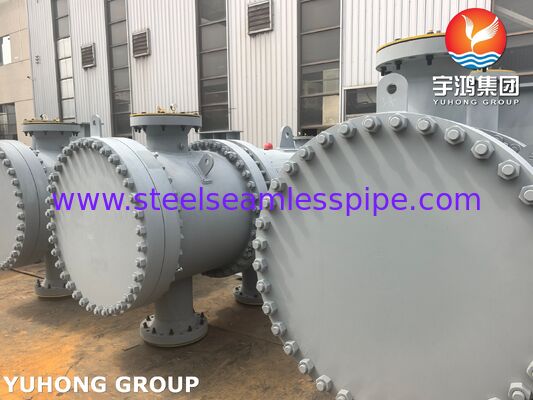

Shell and Tube Heat Exchanger--- Your Reliable, Efficient Built for Industy

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	Yuhong
Certification:	ASME U Stamped NB PED
Numéro de modèle:	Échangeur de chaleur de coquille et de tube

Conditions de paiement et expédition:

Quantité de commande min:	1 ensemble
Prix:	Negotaible
Détails d'emballage:	Digne paquet de mer
Délai de livraison:	30 à 180 jours
Conditions de paiement:	LC, T/T
Capacité d'approvisionnement:	année de 3000 ensembles

Contact

Tous les produits

Pipe sans soudure en acier inoxydable (332)

Tube sans couture d'acier inoxydable (324)

Tuyau d'acier inoxydable duplex (134)

Tube d'acier inoxydable de duplex (37)

Tubes à aiguille (158)

Tubes à nageoires (705)

échangeur de chaleur (31)

tube d'échangeur de chaleur (459)

Résistance à l'échangeur de chaleur (49)

Plaque tubulaire pour échangeur de chaleur (125)

cloison d'échangeur de chaleur (39)

Refroidisseur d'air (11)

Récipient sous pression (4)

tuyau soudé d'acier inoxydable (61)

Tube soudé d'acier inoxydable (132)

Tuyau d'alliage de nickel (273)

Tube d'alliage de nickel (103)

Tube d'alliage de cuivre (250)

Tube d'acier allié (210)

Tube titanique (20)

tube recuit lumineux (172)

Tube de chaudière (152)

montage en acier (862)

Bride en acier (660)

Autres (406)

Pièces de revêtement (8)

Description de produit détaillée

Applications:	Industrie du pétrole et du gaz	Application:	Pétrole et gaz, chimie, transformation des aliments, construction

Shell and Tube Heat Exchanger

Reliable. Efficient. Built for Industry.

Product Overview

Our Shell and Tube Heat Exchangers are engineered for high-performance heat transfer in demanding industrial environments. Designed in accordance with international standards (ASME, TEMA, GB/T 151), they provide robust, long-lasting solutions for heating, cooling, condensation, and evaporation processes.

Whether you are in chemical processing, oil & gas, power generation, HVAC, or food production, our heat exchangers deliver consistent thermal efficiency under extreme temperatures and pressures.

Key Features

Feature	Benefit
Heavy-duty construction	Withstands high pressure (up to 30+ MPa) and high temperature (up to 600°C)
Flexible design options	Fixed tube sheet, floating head, and U-tube types to suit various thermal and cleaning requirements
High thermal efficiency	Optimized baffle spacing and tube arrangement (triangular or square pitch) for maximum heat transfer
Corrosion-resistant materials	Available in carbon steel, stainless steel, titanium, and special alloys for aggressive fluids
Easy maintenance	Removable tube bundle options for mechanical cleaning and inspection

Available Configurations

Type	Best For
Fixed Tube Sheet	Low temperature difference, clean fluids on shell side
Floating Head	Large temperature differences, dirty fluids requiring regular cleaning
U-Tube	High temperature / high pressure, thermal expansion concerns

Typical Applications

Oil & Gas - Crude oil heating, gas cooling, refinery condensers
Chemical & Petrochemical - Reactor cooling, solvent recovery, acid heating
Power Plants - Feedwater preheating, turbine exhaust condensation
HVAC & Refrigeration - Chiller evaporators and condensers
Pharmaceutical & Food - Sterilization, pasteurization, and clean-in-place (CIP) systems

Technical Specifications (Typical Range)

Parameter	Value
Heat transfer area	1 m² - 2,500+ m²
Shell diameter	100 mm - 2,500 mm
Tube length	1.5 m - 12 m
Tube outer diameter	12 mm - 51 mm
Design pressure	Vacuum - 35 MPa
Design temperature	-50°C - 600°C

Custom designs are available for specific process conditions.

Why Choose Our Shell and Tube Heat Exchangers?

Our heat exchangers combine robust engineering with flexible design options to meet your specific industrial requirements. With proven performance across multiple industries and compliance with international standards, we deliver reliable thermal solutions that stand up to the most demanding operating conditions.
