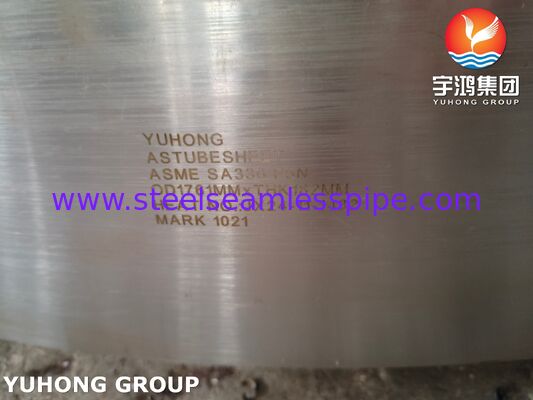

ASME SA336 F5 Réseau de tuyaux pour échangeurs de chaleur à haute pression

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	Yuhong
Certification:	ASME, TEMA, ISO
Numéro de modèle:	Feuille de tube

Conditions de paiement et expédition:

Quantité de commande min:	1 ensemble
Prix:	Négociable
Détails d'emballage:	Boîtier en bois, étuis à pli-wooden avec des cadres en acier
Délai de livraison:	30 à 90 jours
Capacité d'approvisionnement:	100 ensembles par mois

Contact

Tous les produits

Pipe sans soudure en acier inoxydable (327)

Tube sans couture d'acier inoxydable (320)

Tuyau d'acier inoxydable duplex (134)

Tube d'acier inoxydable de duplex (36)

Tubes à aiguille (152)

Tubes à nageoires (697)

échangeur de chaleur (24)

tube d'échangeur de chaleur (456)

Résistance à l'échangeur de chaleur (46)

Plaque tubulaire pour échangeur de chaleur (124)

cloison d'échangeur de chaleur (39)

Refroidisseur d'air (10)

Récipient sous pression (4)

tuyau soudé d'acier inoxydable (60)

Tube soudé d'acier inoxydable (129)

Tuyau d'alliage de nickel (270)

Tube d'alliage de nickel (95)

Tube d'alliage de cuivre (247)

Tube d'acier allié (208)

Tube titanique (19)

tube recuit lumineux (172)

Tube de chaudière (151)

montage en acier (854)

Bride en acier (652)

Autres (403)

Pièces de revêtement (8)

Description de produit détaillée

Mettre en évidence:

ASME SA336 F5 grille de tuyaux

Réseau de tuyaux pour échangeurs de chaleur

une grille de tuyaux haute pression

Tube Sheet for Heat Exchangers High Pressure

Tube Sheet made of ASME SA336 F5 (5Cr-0.5Mo)

Yuhong Group — leading supplier of heat exchange equipment, pressure vessels and air coolers. The company specializes in complete supplies for the oil and gas, energy and chemical industries, guaranteeing high product quality and strict compliance with international standards.

Tube Sheet made of ASME SA336 F5 (5Cr-0.5Mo) — a high-strength component designed for operation in extreme temperature and pressure conditions. The material is characterized by excellent resistance to water corrosion, oxidation and sulfidation, making it an ideal choice for oil refining plants, hydrocracking units, парогенераторов and chemical production. The products are manufactured by forging with subsequent normalization and annealing, which ensures structural uniformity and high mechanical properties.

Chemical composition (ASME SA-336/SA-336M standards)

Element	C	Mn	Si	Cr	Mo	P	S
Content, %	≤0.15	0.30-0.60	≤0.50	4.0-6.0	0.45-0.65	≤0.025	≤0.025

Mechanical properties

Parameter	Yield strength (Rp0.2)	Tensile strength (Rm)	Elongation (A)	Reduction of area (Z)	Hardness (HBW)	Impact strength (KV)
Value	≥ 250 MPa	415 - 585 MPa	≥ 20%	≥ 40%	≤ 342	up to 41 J

Material advantages

Resistance to hydrogen medium (Hydrogen Service):The alloying of chromium and molybdenum ensures resistance to high-temperature hydrogen corrosion and hydrogen embrittlement, which extends the service life of the equipment.
High-temperature strength:Maintains mechanical properties during prolonged operation in the temperature range up to 600°C, preventing creep deformation of the tube sheet.
Weldability:The optimized chemical composition allows the use of standard welding procedures with pre- and post-weld heat treatment (PWHT), ensuring the reliability of welded joints with the shell.
Uniform structure:Manufacturing by forging with subsequent heat treatment guarantees the absence of internal defects and stability of properties throughout the cross-section.

Application areas

Oil refining industry (hydrocracking reactors, hydrotreaters, catalytic reforming units)
Petrochemical production (high-temperature heat exchangers, pressure vessels)
Energy engineering (steam generators, boiler-utilizers)
Equipment for hydrogen and syngas production
Any heat exchange equipment operating in a hydrogen and water-containing medium

Custom solutions and quality control

We offer a full cycle of tube sheet production according to customer drawings. We manufacture products by stamping or forging with subsequent high-precision machining (drilling of holes with compliance with TEMA standards).

Product quality is confirmed by:

100% ultrasonic testing (UT) and dye penetrant testing (PT)
Certifications according to ASME, PED 2014/68/EU, GOST standards, as well as with the possibility of third-party inspection (TPI)

Contact us for consultation on selecting material for your heat exchange equipment. We guarantee compliance with delivery times and product compliance with the strictest oil and gas industry standards.
