ASTM A269 SUS304 Medical Grade Capillary Tubes, Corrosion Resistant，Precise for Hypodermic Needles, Medical Devices

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Numéro de modèle:	Tubes capillaires

Conditions de paiement et expédition:

Quantité de commande min:	10kg
Prix:	Négociable
Détails d'emballage:	Caisse en bois contreplaqué/étui en fer/lot avec capuchon en plastique
Délai de livraison:	10-90 jours
Conditions de paiement:	LC, T/T
Capacité d'approvisionnement:	Selon la demande du client

Contact

Tous les produits

Pipe sans soudure en acier inoxydable (331)

Tube sans couture d'acier inoxydable (322)

Tuyau d'acier inoxydable duplex (134)

Tube d'acier inoxydable de duplex (36)

Tubes à aiguille (156)

Tubes à nageoires (703)

échangeur de chaleur (28)

tube d'échangeur de chaleur (458)

Résistance à l'échangeur de chaleur (49)

Plaque tubulaire pour échangeur de chaleur (125)

cloison d'échangeur de chaleur (39)

Refroidisseur d'air (11)

Récipient sous pression (4)

tuyau soudé d'acier inoxydable (61)

Tube soudé d'acier inoxydable (132)

Tuyau d'alliage de nickel (273)

Tube d'alliage de nickel (101)

Tube d'alliage de cuivre (250)

Tube d'acier allié (210)

Tube titanique (20)

tube recuit lumineux (172)

Tube de chaudière (152)

montage en acier (860)

Bride en acier (659)

Autres (404)

Pièces de revêtement (8)

Description de produit détaillée

Diamètre extérieur:	0,3 mm 0,4 mm 0,5 mm	Grade:	SS304 304L 316 316L
Surface de l'aiguille:	Recuit brillant	Usage:	Procédures médicales
Longueur:	Dépendez de la demande de client	emballer:	CAISSE DE CONTREPLAQUÉ, PAQUET
Mettre en évidence:	ASTM A269 SUS304 capillary tubes , corrosion resistant medical needle tubes , precise hypodermic needle tubing

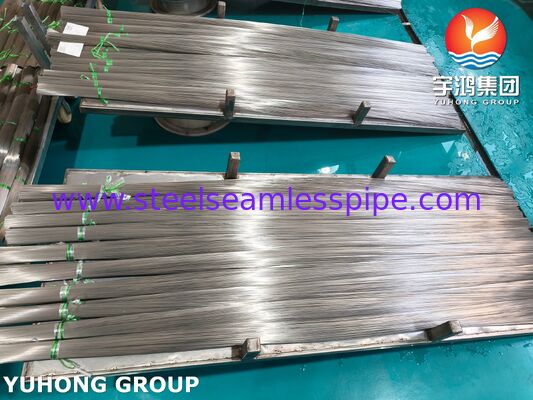

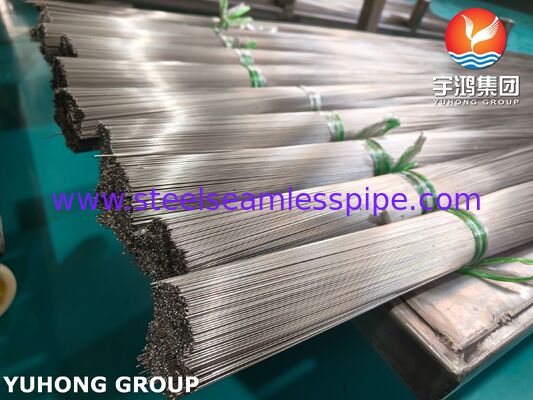

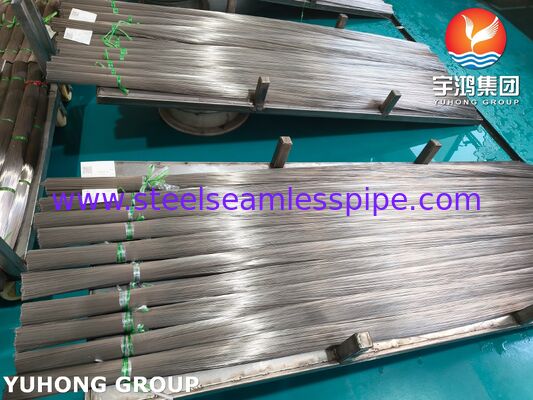

ASTM A269 SUS304 Medical Grade Capillary Tubes, Corrosion Resistant,Precise for Hypodermic Needles, Medical Devices

ASTM A269 SUS304 medical capillary tubing is a precision micro-tube manufactured according to ASTM A269 standards, made of SUS304 stainless steel, and specifically designed for medical applications.

304 stainless steel is widely recognized for its good biocompatibility. Thanks to its excellent corrosion resistance and biocompatibility, capillary tubes play a crucial role in the medical field.

Medical Needle Application Selection Notes: TP304 is commonly selected for general medical needle applications requiring good strength, ductility, and corrosion resistance.

TP304L offers enhanced weldability due to its lower carbon content, making it ideal for welded needle assemblies where post-weld annealing is not performed.

304/304L Dual Certified tubing is also available, meeting both composition requirements, providing maximum flexibility for medical device manufacturing.

Let me know if you need additional data such as surface finish requirements (BA/EP) or dimensional tolerances for medical capillary tube applications.

Chemical Composition
Element	Grade: TP304 (wt%)
Carbon (C)	≤ 0.08
Manganese (Mn)	≤ 2.00
Phosphorus (P)	≤ 0.045
Sulfur (S)	≤ 0.030
Silicon (Si)	≤ 1.00
Chromium (Cr)	18.0 – 20.0
Nickel (Ni)	8.0 – 11.0
Iron (Fe)	Balance

Mechanical Properties
Property	Value (min.)
Yield Strength (0.2% offset)	≥ 205 MPa (30 ksi)
Tensile Strength	≥ 515 MPa (75 ksi)
Elongation (in 2 inches / 50 mm)	≥ 35%
Hardness (Rockwell B)	≤ 90 HRB

Mechanical Properties Comparison (304 vs. 304L)
Property	TP304	TP304L
Yield Strength (min.)	205 MPa (30 ksi)	170 MPa (25 ksi)
Tensile Strength (min.)	515 MPa (75 ksi)	485 MPa (70 ksi)
Elongation (min.)	35%	35%

Applications:

Forceps and irrigation/suction tubes for laparoscopic and arthroscopic endoscopes, or as precision components of catheters and guidewires.

Inner cannulas for high-end injection needles, puncture needles, and insulin pump tubing, ensuring accurate.

Dental and Surgical Tools: Water/air supply tubing for dental handpieces, or as the rigid component of liposuction cannulas and surgical irrigation tubes.

In Vitro Diagnostic Equipment: Inside blood analyzers, biochemical analyzers, and other equipment, responsible for the precise and stable delivery of minute amounts of reagents or samples.

Medical Device Sensors: Protective sheaths for temperature probes and pressure sensors, isolating interference and ensuring accurate signal transmission.
