ASTM A268 TP410 Ferritic Stainless Steel Seamless Pipe For Heat Exchanger

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	YUHONG GROUP
Certification:	ABS , GL , DNV , NK , PED , AD2000 , GOST9941-81 , CCS , ISO 9001-2008
Numéro de modèle:	TP410

Conditions de paiement et expédition:

Quantité de commande min:	500 kg
Prix:	Négociable
Détails d'emballage:	Casse en contreplaqué
Délai de livraison:	Dépend de la quantité
Conditions de paiement:	T/T, L/C à vue
Capacité d'approvisionnement:	10000 tonnes/mois

Contact

Tous les produits

Pipe sans soudure en acier inoxydable (285)

Tube sans couture d'acier inoxydable (273)

Tuyau d'acier inoxydable duplex (127)

Tube d'acier inoxydable de duplex (28)

Tubes à aiguille (98)

Tubes à nageoires (608)

échangeur de chaleur (15)

tube d'échangeur de chaleur (424)

Résistance à l'échangeur de chaleur (37)

Plaque tubulaire pour échangeur de chaleur (115)

cloison d'échangeur de chaleur (36)

Refroidisseur d'air (7)

Récipient sous pression (4)

tuyau soudé d'acier inoxydable (57)

Tube soudé d'acier inoxydable (112)

Tuyau d'alliage de nickel (259)

Tube d'alliage de nickel (75)

Tube d'alliage de cuivre (219)

Tube d'acier allié (177)

Tube titanique (9)

tube recuit lumineux (153)

Tube de chaudière (138)

montage en acier (791)

Bride en acier (577)

Autres (386)

Pièces de revêtement (5)

Description de produit détaillée

Grade du matériau:	TP410	Standard:	ASTM A268
Taille:	19.05 - 76.2mm	W.T:	jusqu'à 24mm
Longueur:	Longueur aléatoire simple, aléatoire double et coupée	TNT:	ET / HT / UT / PT
Emballage:	cas/paquet Pli-en bois	application:	Échangeur de chaleur de gaz de pétrole
Mettre en évidence:	A268 Ferritic Stainless Steel Pipe , ASTM A268 Stainless Steel Pipe , TP410 Ferritic Stainless Steel Pipe

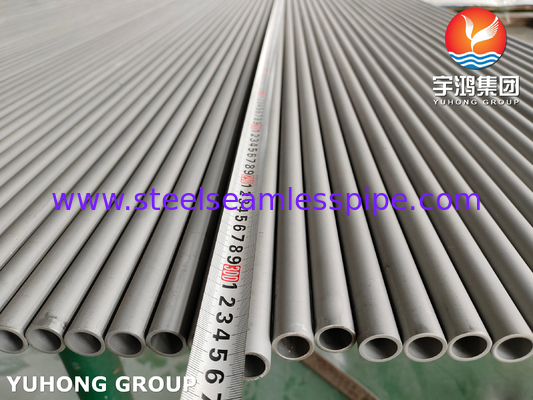

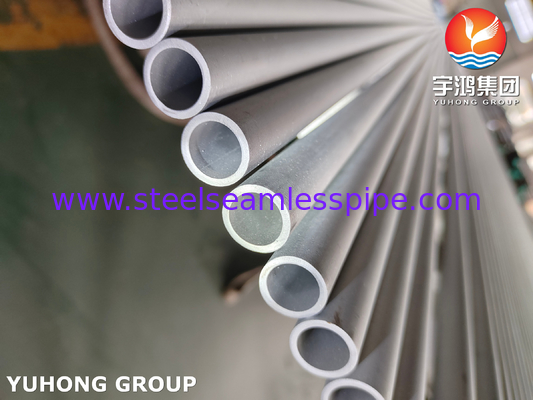

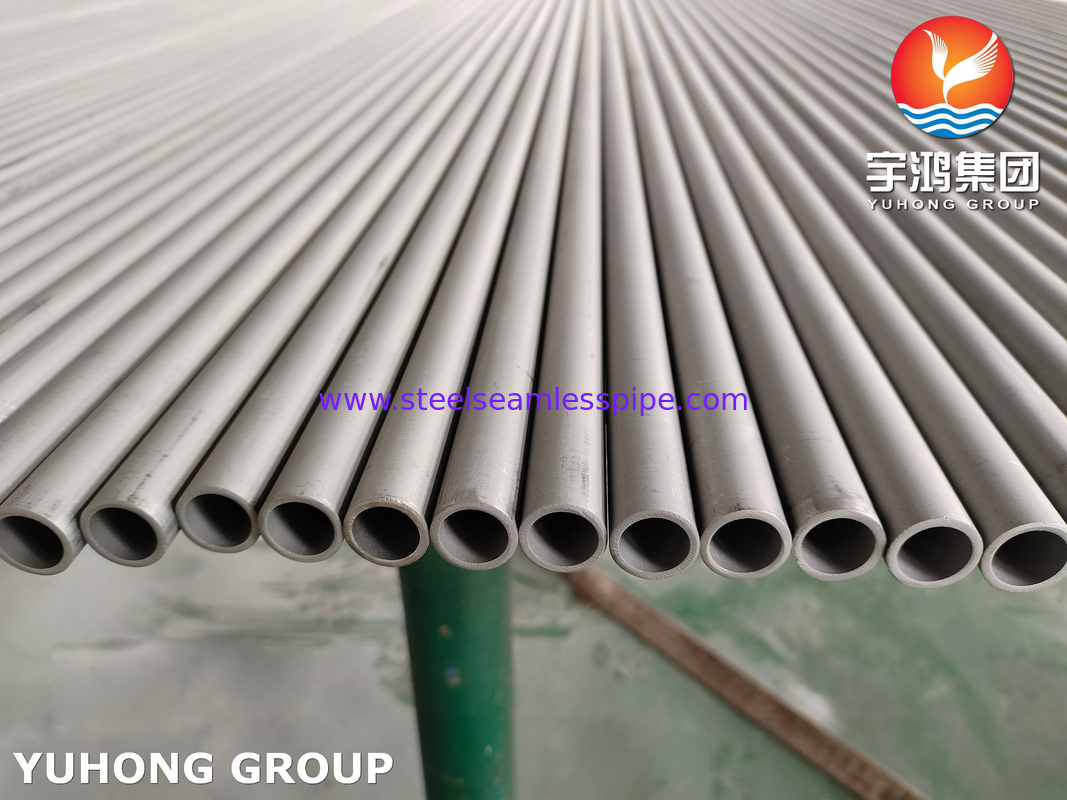

ASTM A268 TP410 Ferritic Stainless Steel Seamless Pipe for Heat Exchanger

ASTM A268 TP410 is a ferritic stainless steel grade designed for seamless pipes and tubes used in high-temperature and corrosive environments. It is widely applied in heat exchangers, condensers, and other critical applications where excellent corrosion resistance and mechanical properties are required.

Key Features:

Material Composition:
- TP410 is a martensitic stainless steel containing high chromium content, offering excellent resistance to oxidation and corrosion.
- Typical composition includes 11.5-13.5% Chromium (Cr) and 0.08-0.15% Carbon (C).
Corrosion Resistance:
- Good resistance to atmospheric corrosion, steam, and mild chemical environments.
- Suitable for applications in oxidizing and mildly corrosive conditions.
Mechanical Properties:
- High strength and good toughness after heat treatment.
- Excellent resistance to thermal fatigue and scaling.
Heat Resistance:
- Operates effectively in high-temperature environments.
- Ideal for heat exchanger systems where thermal stability is critical.

Characteristic of ASTM A268 TP410

Grade 410 stainless steel is a general-purpose martensitic stainless steel containing 11.5% chromium, which provides good corrosion resistance. However, the corrosion resistance of Grade 410 steel can be further improved through a number of processes including quenching, tempering and polishing. Quenching and tempering harden Grade 410 steels. They are typically used in applications involving mild corrosion, heat resistance and high strength.

The tubes shall have a hardness number that will not exceed the prescribed Brinell and Rockwell hardness values, TP410, TP430 and TP439 max Rockwell hardness 90HRB, Test report required certification conform to Specification A1016/A1016M.

Several mechanical tests shall be conducted, namely:

Tension test;

Flaring test (for seamless tubes);

Flange test (for welded tubes);

Hardness test;

Reverse flattening test;

Intergranular corrosion test; and

Hydrostatic or nondestructive electric test.

Chemical Composition of ASTM A268 TP410

C %	Mn %	P %	S %	Si %	Cr %
0.15 maximum	1.00 maximum	0.040 maximum	0.030 maximum	1.00 maximum	11.5-13.5

Mechanical Strength of ASTM A268 TP410

Tensile Stress, Mpa	Yield Stress, MPa	Elongation, %	Hardness, HB
415 minimum	205 minimum	20 minimum	207 maximum

ASTM A268 Stainless Steel Tubing Sizes Tolerance
Outside Diameter, In.[Mm]	OD Tolerance, In.[Mm]	Wall Thickness, %	Thin Wall Tubes
Up To1⁄2, [12.7], Excl	±0.005 [0.13]	±15
1⁄2 To 11⁄2 [12.7 To 38.1], Excl/Td>	±0.005 [0.13]	±10	Less Than 0.065 In. [1.6 Mm] Nominal
11⁄2 To 31⁄2 [38.1 To 88.9], Excl	±0.010 [0.25]	±10	Less Than 0.095 In. [2.4 Mm] Nominal
31⁄2 To 51⁄2 [88.9 To 139.7], Excl	±0.015 [0.38]	±10	Less Than 0.150 In. [3.8 Mm] Nominal
51⁄2 To 8 [139.7 To 203.2], Incl	±0.030 [0.76]	±10	Less Than 0.150 In. [3.8 Mm] Nominal

Applications:

Heat Exchangers: Used in oil refineries, power plants, and chemical industries for efficient heat transfer.
Condensers: Suitable for condensing steam or other fluids in industrial processes.
Boiler Tubes: Commonly used as boiler components in high-pressure environments.

Advantages of TP410 Ferritic Stainless Steel:
